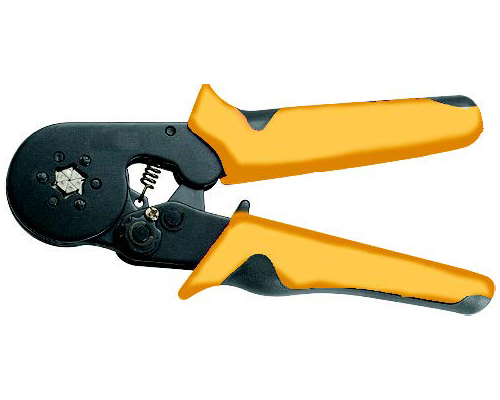

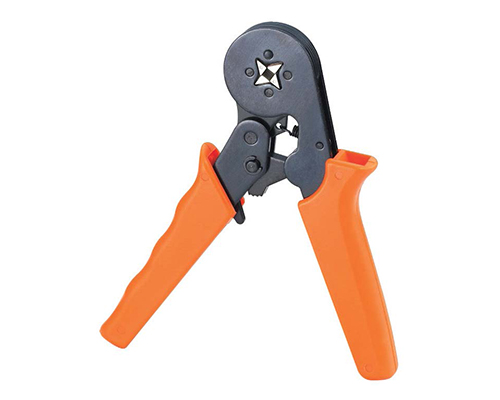

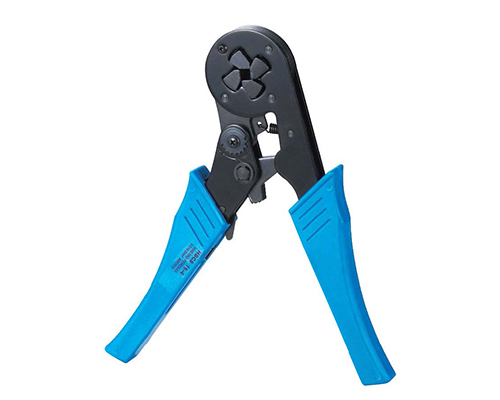

Mini-type Self Adjustable Crimping Tool

Key Features:

Applicable for tubular bare terminals and pre-insulated terminals where welding is not needed.

Terminals to be inserted laterally when crimping.

Intricately designed crimping dies set and self-releasing integrated locking mechanism ensures high quality crimping

When the desired crimping pressure is reached, the lock will automatically release the jaws of the pliers





Specification

HSC8 6-4

HSC8 16-4

HSC86-6A

Capacity (mm2) 0.25-6 4-16 0.25-6
AWG 24-10 12-6 24-10
Length (mm) 175 210 175
Weight (kg) 0.36 0.52 0.4/0.44
HS16
