9” Ratchet Terminal Crimping Tool
Key Features:
The components of the tool are made of special steel which comprise of rustproof features
Adheres to strict testing which conforms to international standard prior to delivery
Intricately designed crimping dies set and self-releasing integrated locking mechanism
ensures high quality crimping
Specification |
Capacity (mm2) |
AWG |
Length (mm) |
Weight (kg) |
| HS-30J | 0.5-6 | 22-10 | 230 | 0.6 |

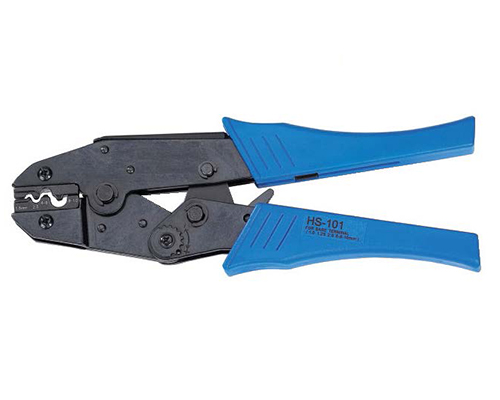

| HS-101 | 1.5-10 | 16-8 | 230 | 0.6 |

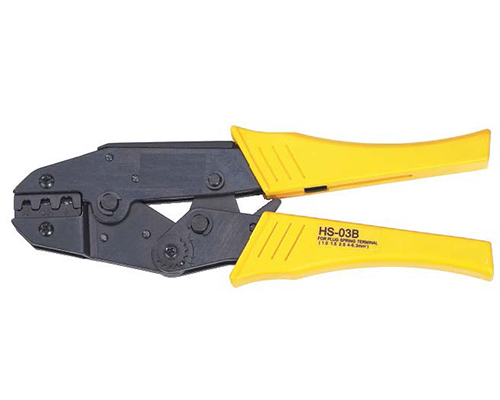

| HS-03B | 1.5-6 | 16-10 | 230 | 0.6 |
| HS-07FL | 0.5-6 | 22-10 | 230 | 0.6 |
| HS-05FL/06FL | 0.5-1.51.5-2.5 | 22-14 | 230 | 0.6 |
| HS-05WF | 0.5-6 | 22-10 | 203 | 0.4 |
| HS-103 | 1.5-10 | 16-8 | 230 | 0.6 |
| HS02H1 | 1.0-6.5 | – | 230 | 0.6 |
| HS2546B | 2, 5, 4, 6 | 13-10 | 230 | 0.52 |
| HS-HT4 | 0.5-1.0, 1.5, 2.5, 4.0 | 22-12 | 203 | 0.6 |
| HS35WF | 10, 16, 25, 35 | 8-2 | 230 | 0.52/0.56 |
